SMARC-sAMX6i

Freescale based SMARC Computer-on-Modules enables highly scalable ultra-low power applications
The highly scalable Kontron SMARC-sAMX6i modules with single, dual or quad core Freescale i MX6 processors cover an extremely wide performance range. Based on the ARM Cortex A9 technology, they enable an efficient development of smart devices in an extremely compact, fanless design with balanced processor and graphics performance.

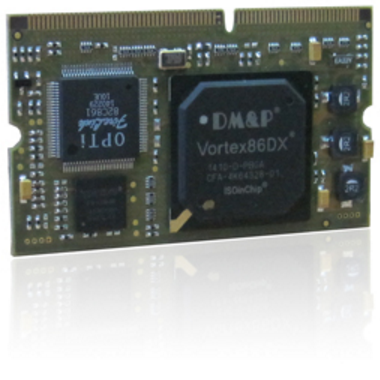

CM12001

       CM12001 集成了Vortex86DX处理器的完整功能，板上集成处理器，BIOS，内存（最大可支持512MB），键盘控制器，实时时钟，最大可支持16GB板载IDE电子盘。该设计采用DMP公司高度集成的嵌入式处理芯片，独特的x86架构内核，可以广泛应用于嵌入式领域。CM12001采用DIMM-PC标准接口，引出ISA总线，还提供丰富的外围接口，如USB，PS2, 并口，串口等。

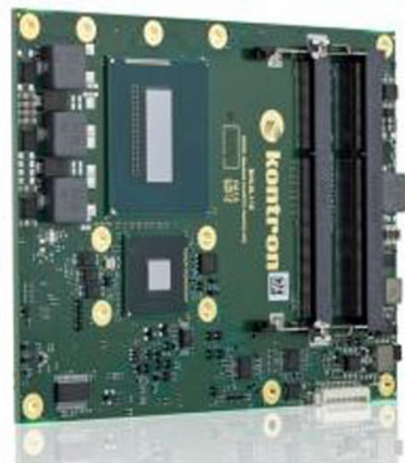

COMe-bHL6

       The brandnew application-ready COMe-bHL6 offers increased performance density and up to twice the graphics performance compared to its predecessors. Up to three independent, daisy-chained displays with up to 4K resolution are supported to create stunning user experiences. Further to this, DirectX® 11.1 and OpenGL 4.x support paves the way for compelling visuals when videos, graphics and interactive content are being displayed. By integrating the new Intel® AVX2 and OpenCL 1.2, Kontron’s new Computer-on-Modules additionally not only provide an increase in floating-point performance they also possess improved parallel processing capacities. Typical application areas can be found in markets such as digital signage, professional gaming and entertainment, medical imaging and surveillance and security as well as industrial plant and machine line control on shop floor- and control room-level.

       Engineers can immediately commence with evaluating these new benchmark Computer-on-Modules on all Kontron COM Express® pin-out type 6-compliant starter kits.

The Kontron COM Express® pin-out type 6 COMe-bHL6 module is available in several different variants ranging from the cost-optimized low-power processor versions up to quad-core Intel® Core™ i7 processors with up to 4x 2.4 GHz. The modules are designed with the Intel® Mobile QM87 chipset, host up to 8 GB DDR3 RAM and support 7 PCI Express x1 lanes and 1 PEG x16 interface which is also compatible to standard PCI Express devices. Less complex peripherals can be connected via SPI and LPC. Additional dedicated features include 4 SATA 3 ports, as well as Gigabit Ethernet, 4 USB 3.0 ports, 4 USB 2.0 and 2 serial ports. The Kontron COMe-cbHL6 features comprehensive display support with 3x dual mode DisplayPort++ which can also output, HDMI, DVI and DisplayPort 1.2. Industrial applications benefit from the watchdog and real-time clock. The module supports an 8.5-20V wide-range power supply. The support of smart batteries via MARS and the standardized embedded application programming interface EAPI round off the feature set and provide engineers with a comprehensive service package that eases system development as well as system programming.

       For customers wanting to instantly leverage the new graphics and computing power in their existing designs based on individual carrier boards, Kontron also offers standardized migration support services to accelerate the design-in phase and thus achieve fastest field deployment.

       The Kontron COM Express® compact Computer-on-Module COMe-bHL6 supports the full Windows OS portfolio along with Linux and VxWorks. The product is available now in EFT quantities. Series production with full software support is scheduled to start in Q3 2012.

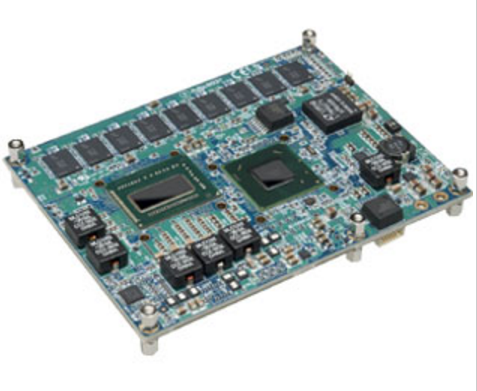

CM28037

     该产品的设计能够满足最高的可靠性和质量要求，CM28037囊括了很多最新进的功能，包括：一个x16 Gen3 的PCI Express接口，6个x1第二代PCIExpress通道（可配置），3位数字加一的模拟视频端口，4个SATA端口（包括2个SATA-600接口），两个USB 3.0和两个USB 2.0的端口和一个10/100/1000以太网接口。
    CM28037支持高达8GB的表贴DDR3 ECC内存和低功耗配置，是理想的抗恶劣计算机系统核心。
    CM28037的引出线可以从第6类切换到第2类，且允许用户采用一个单一的平台，最大效率的驾驭一定数量的应用程序。
    CM28037支持大多数主要的操作系统，包括微软Windows 7，Windows，WES 7，Wind River Linux和VxWorks。另外，该产品还可以被定制成一个简单易用的可以访问所有功能模块的开发工具包。

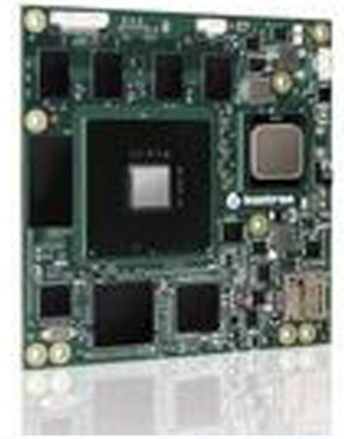

COMe-mSP1

Intel® Atom™ 移动处理器 - 高度集成双芯片平台
控创 nanoETXexpress-SP 是首个基于Intel 45nm制程的信用卡大小 COM Express模块。
首个nanoETXexpress-SP 计算机模块使用


Intel® Atom™ Z5XX 系列处理器
>> 45nm Hi-K 工艺的全新设计
>> 全新 IA 微架构
>> 功耗仅为ULV处理器功耗的十分之一

使用 Intel® System Controller Hub US15W
>>集成图形显示的单芯片系统设计


nanoETXexpress COM Express 模块大小仅为55mm x 84mm, 是移动应用领域的理想选择。配备低能耗x86处理器、高端图形芯片、PCI Express以及Serial ATA接口，同时提供更长的电池续航时间。控创 nanoETXexpress 产品设计用于手持设备, 例如医学领域或多媒体领域的小型移动信息系统等。以开拓新的行业应用为第一优先，使之不受设备体积以及能耗的限制。无论是连接器位置还是针脚定义，控创 nanoETXexpress 模块都与COM Express (COM.0) Type 1 pinout百分之百兼容。

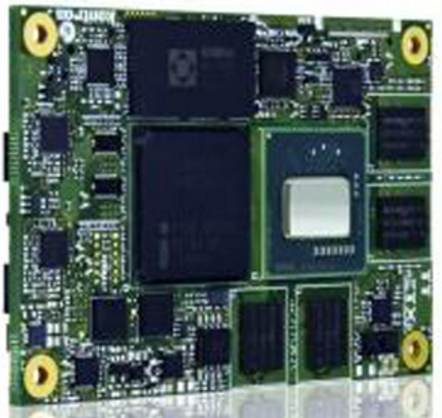

COMe-mTT10

    信用卡大小模块。使用工业级配件以满足恶劣环境应用。
    nanoETXexpress嵌入式计算机模块家族新添4位成员，处理器主频更加灵活： 600MHz 到1.6GHz 并达到工业级宽温标准。此款超小型(55mm x 84 mm)COM Express® 模块采用Intel® Atom™ E6XX系列处理器，遵循最新PICMG COM Express® COM.0 R.2.0 pin-out Type 10 定义. nanoETXexpress-TT产品系列是首款同规格产品中采用工业级部件，拥有全功能完备接口并实现(E2) -40 到+85°C宽温的嵌入式模块. 具备板载内存，强固micro-SD卡槽或一个可选SATA Flash 存储，它是针对恶劣环境的理想选择，对nano产品线进行了很好的补充。

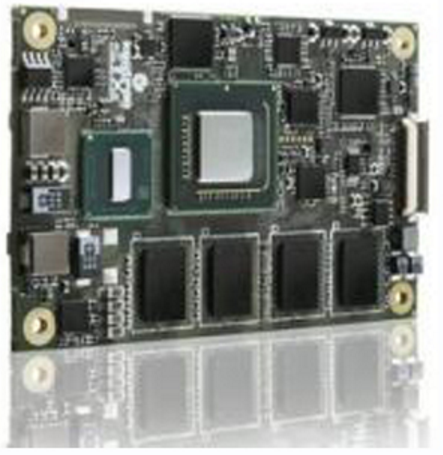

COMe-mCT10

Credit-Card sized COM Express® mini with outstanding graphics performance
The first credit card size (55mm x 84 mm) COM Express® mini COM based on Intel® 32nm Dual Core technology. Three performance versions are available from 2x 1.6 GHz up to 2x 1.86GHz.
With onboard memory and optional flash as well as diversified graphics interfaces, the Kontron COMe-mCT10 series is optimized for the Industrial Automation, Infotainment and Medical markets to deliver outstanding graphics performance.

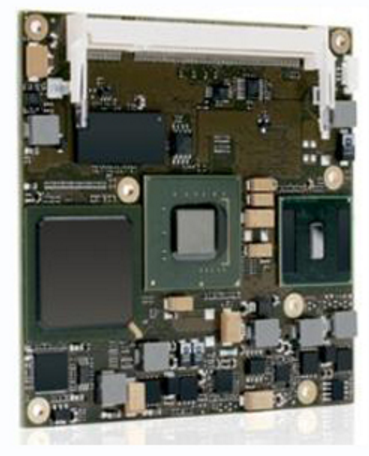

COMe-cDC2

microETXexpress®-DC - 小巧经济型 Intel® Atom™ 解决方案

microETXexpress®-DC 在紧凑型的 95 x 95 mm 大小模块上使用最新的 45nm 制程 Intel® Atom™ N270 1.6 GHz 处理器 以及 Intel® 945GSE 和 ICH7M 芯片组。

控创全新高省电待机模式 S5 Eco 支持 ACPI功能及提供软关机状态下最低的电源消耗——少于1 mA。与通常的 S5 状态相比较， 极大地减少了能耗，电池续航时间也有了显著提高。

与控创所有microETXexpress® 模块相同, 此款产品严格遵循COM Express™ 第二类定义标准。从而使得从现有载板升级变得异常便捷，并且免去了重新设计的需要。

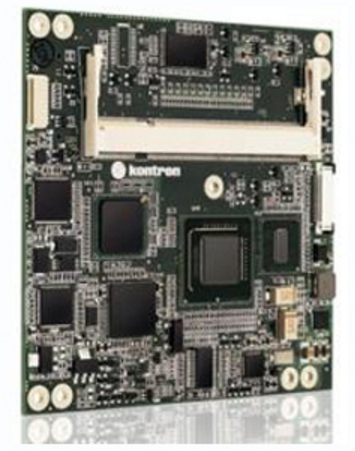

COMe-cXLi2

The Kontron microETXexpress®-XL, a COM Express™ compact module (95x95mm) with Pin-out Type 2, is truly designed for use in extreme conditions. Each component is selected with the industrial temperature range of -40 to +85°C in mind as well as the necessary tolerances for high reliability with respect to shock and vibration resistance. The microETXexpress®-XL is based on the energy-saving Intel® Atom™ processor Z520PT (1.33GHz) and the Intel® US15WPT System Controller Hub.
